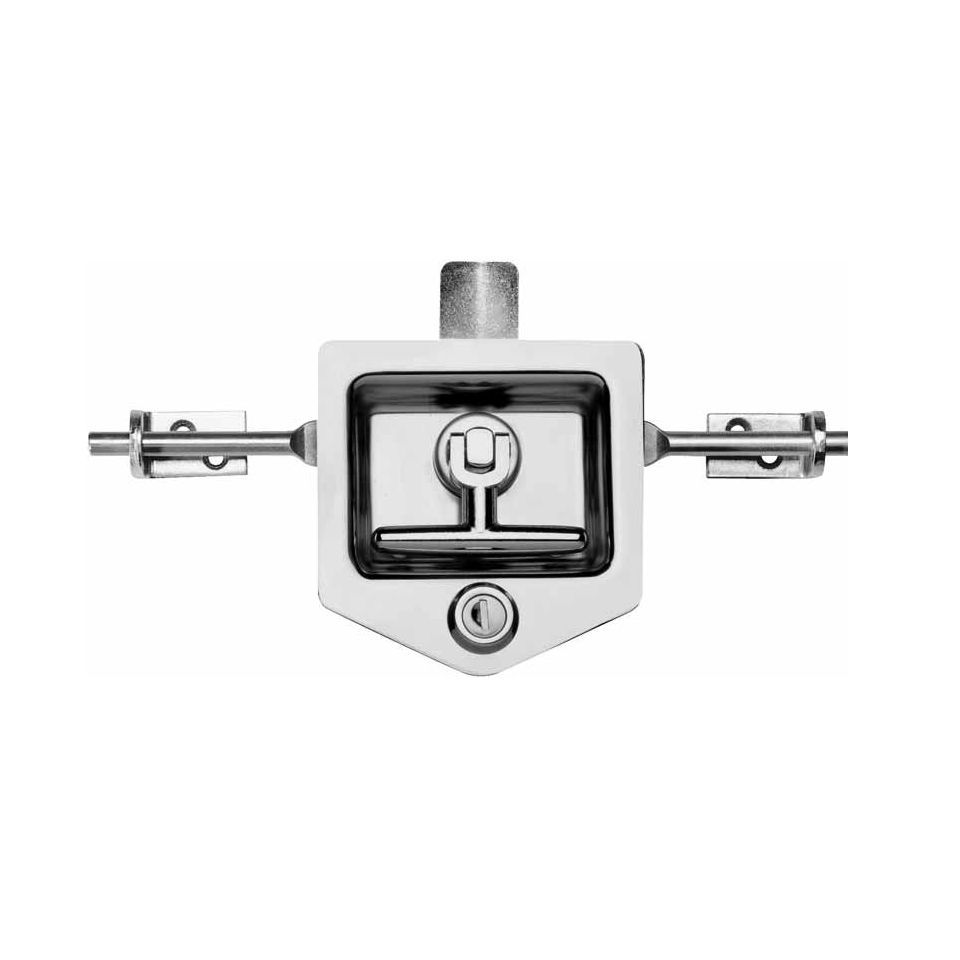

‘Drop-T’ lock 3-way latch system, mixed differ. FS880

602W561
The 3-way 'Drop-T' provides a complete latching system for the largest doors. Handle, lock, latch and flush recess pan form a self contained unit needing only a simple cut-out. Rods attached on site and adjustable for either LH or RH movement. Suits drop-down hatches, truck toolboxes and other large enclosures. This model can is blind-mounted. That means that there are 4 bolts on the inside where the lock can be mounted on.

Features

  • DesignIncl cylinder/key FS880
  • ColorStainless steel
  • DimensionsOpening 100x79 mm
  • MaterialStainless steel
  • TypeCompartment lock Drop-T with compression
  • VersionWith tongue/left/right/with rods/blind mounting
